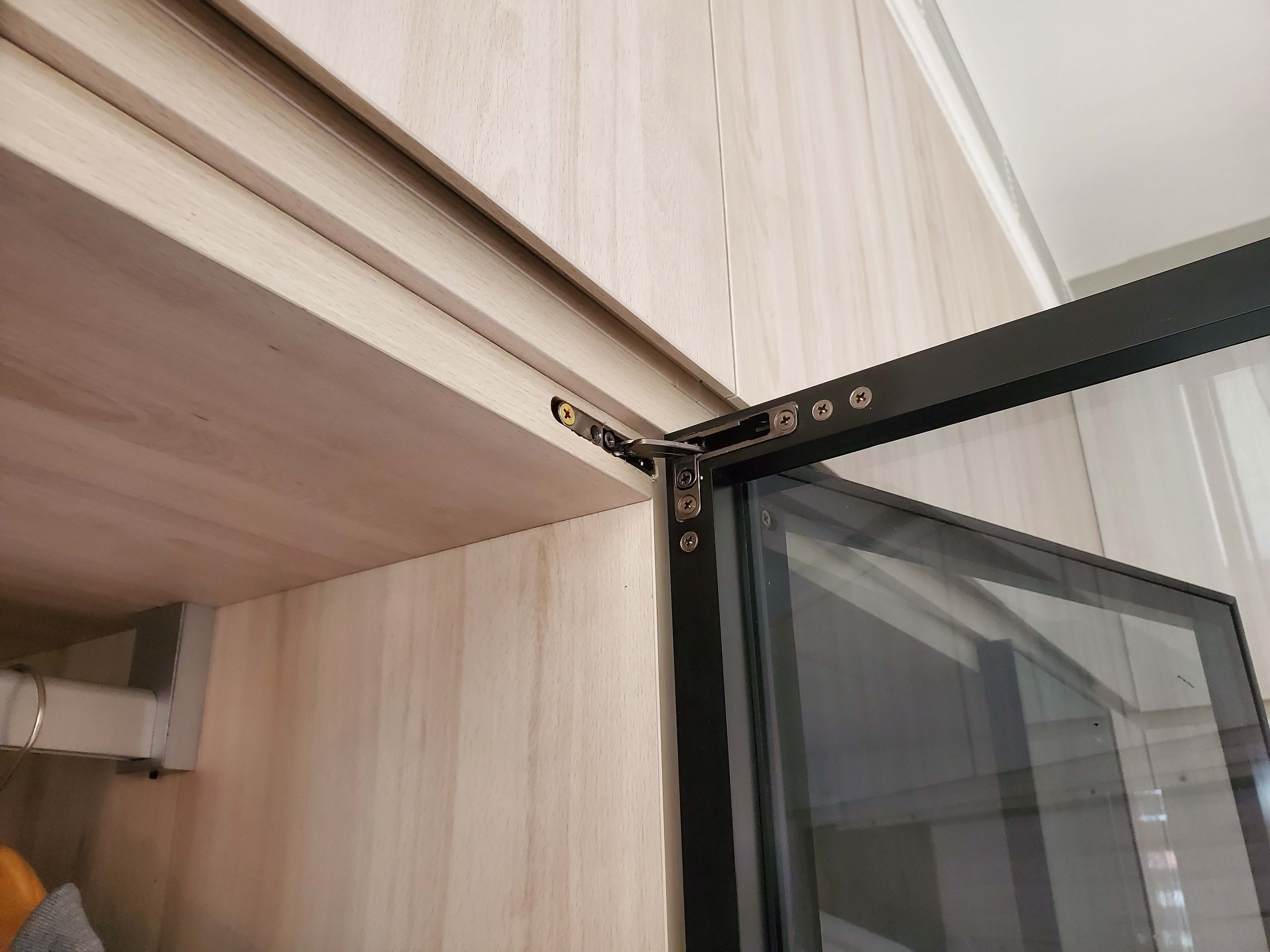

Invisible hinge for alu frame glass door
Zinc alloy
Black (nickel & copper) plated
Max 16 kgs / pair
Max door height: 2200mm
Max door width: 600mm
Used for alu frame, item codes: 7454002 & 7454011
Should use with corner connectors, item code: 7144001
Manual document
Installation instructions
